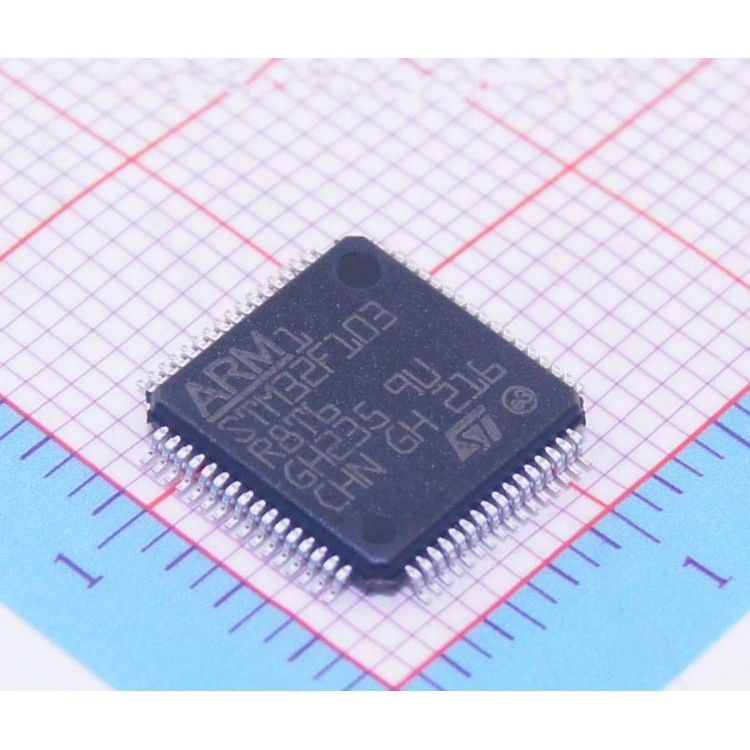

Ảnh sản phẩm thuộc về PNLAB

Thông tin chi tiết sản phẩm

Tên sản phẩm:

STM32F103R8T6

Giá:

49.000

Tình trạng:

Liên hệ

Xuất xứ:

Chính Hãng

Hãng sản xuất:

ST

Mã sản phẩm:

STM32F103R8T6

49.000

49.000 1+ units
44.000 10+ units
39.000 100+ units

STM32F103R8 PDF Datasheet

STM32F103R8 Description

The STM32F103R8 performance line microcontroller incorporates the highperformance ARM Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, highspeed embedded memories (Flash memory of 64 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103R8 offers two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.

The STM32F103R8 medium-density performance line microcontroller operates from a 2.0 to 3.6 V power supply. It is available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.

STM32F103R8 Applications



STM32F103R8 Parameters

STM32F103R8 Memory
Program memory type Flash
Prog. (Bytes) 64 K
RAM (Bytes) 20 K
STM32F103R8 Capability
CPU frequency 72 MHz
16-bit Timer 3
SPI 2
I²S -
I²C 2
USART 3
USB 1
CAN 1
SDIO -
GPIOs 51
Pins 64
Operating voltage (V) 2 to 3.6
STM32F103R8 Packages and Pinouts
LQFP64
