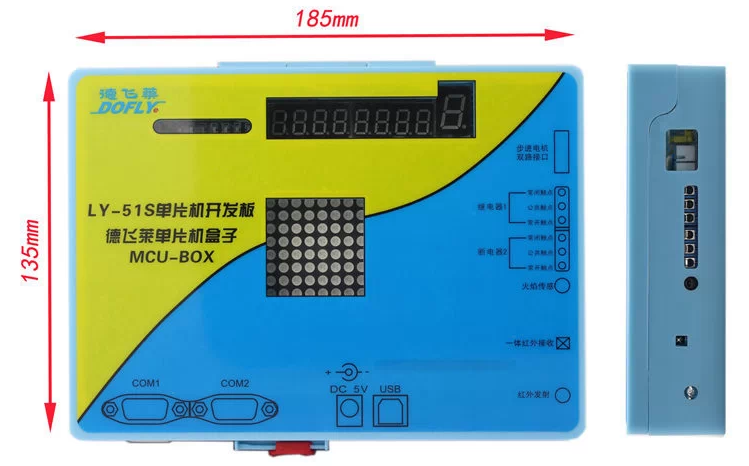

Kit dùng cho vi điều khiển 8051 và ARM STM32F103C8T6

Feature :

• 1 dual power supply system , pioneered the development of a dual power system board, 3.3V and 5V are free to switch, you can take-all IC power supply
• 2 32-bit ARM processor , using STM 32F103C8T6, enhanced processor, set the STM32 family of products 95% or more functions, we can see that the chip is not fully functional, especially for all levels of learning are
• 3 . STM32 with 12 -bit analog-digital ( AD ) converters , can achieve 10 Road, analog input. Onboard there are 8 -bit independent digital-analog module ( ADDA ), to achieve 4 analog inputs 1 analog output.
• 4 . STM32 with 2 hard- I2C bus and two hard- SPI bus , not a software simulation, high speed stability, and can be easily developed in this board experiment.
• 5 . 5 -axis stepper driver module , you can simulate intelligent robot and CNC systems, the software algorithm by linear interpolation, circular interpolation and so on.
• 6 . full-page modular design , flexible combination of functions, high degree of freedom, to leave room to learn and use.
• 7 . industrial sector with the RS485 communication module , the output required by industry standards designed to facilitate access to any RS485 device composed of multi-machine interconnected to form the 485 network systems (two if you have this board, only two lines, two machines can be communication).
• 8 . pulse generator module , the 555 components of the pulse generator can generate adjustable frequency square wave, to give H -bridge circuit to provide pulse source.
• 9 Dual independent serial port module , onboard the 2 serial ports, dual serial ports for the microcontroller. STM32 it has three serial ports, dual serial port can learn.
• 10. TFT true color screen and SD Card module , used to display text, pictures, etc., to do all kinds of man-machine interface with the STM32
• 11. IO output expansion module , from 2 months 74595 latch chips can be extended 16 output port, limit the number of feet from the microcontroller, giving you more space to develop
• 12. IO input expansion module , from 1 a 74165 latch chips can be extended 8 -input interface, not limit the number of single-chip feet, give you more space to develop
• 13 color 8 x 8 dot matrix (red and green) and the driver modules , the interface is completely independent, you can use on-board 595 , 573 , 138 , the microcontroller directly drives. Flexible design allows you to
• 14. USB -serial module , and hardware flow control receive-side open, in various types of communication equipment or an external microcontroller to do hardware flow control and experimental
• 15. 16 completely independent one LED lights , a beginner rare, particularly in the learning STM32 ARM , the more experience 16 months is necessary, because the STM32 are 16 -bit output
• 16. automatically download the module for STC of 51 single-chip design.
• 17. support ucOS II real-time operating system migration , and is equipped with portable routines.
• 18 China's first with an industrial configuration software , you can quickly achieve the kinds of monitoring systems. Increase your learning directly to the application.
• 19 . resources are too rich and some other boards, we all have, a different one.

Kit Include

• 1 new enhanced STC8952 1
• 2 high-quality USB data cable 1
• 3 eight cable 4
• 4 8 single line P Dupont
• 5 red jumper 19
• 6 test battery holder and clock Battery 1PCS
• 7. DVD disc 1
• 8 new multi-fold compression and drop durability
• 9.8 * 8 (red + green) color dot matrix module 1
• 10 new color screen SD card integration module 1
• 11.11.0592 Crystal 1
• 12 new high-speed high-torque stepper motor 1 import
• 13 new DC 1
• 14 new infrared receiver 1
• 15. The new infrared remote control (send button batteries ) 1
• 16 18B20 temperature testing a new
• 17.ARM board a processor core
•
